Goldring G1012GX Cartridge image
  • Goldring G1012GX Cartridge image

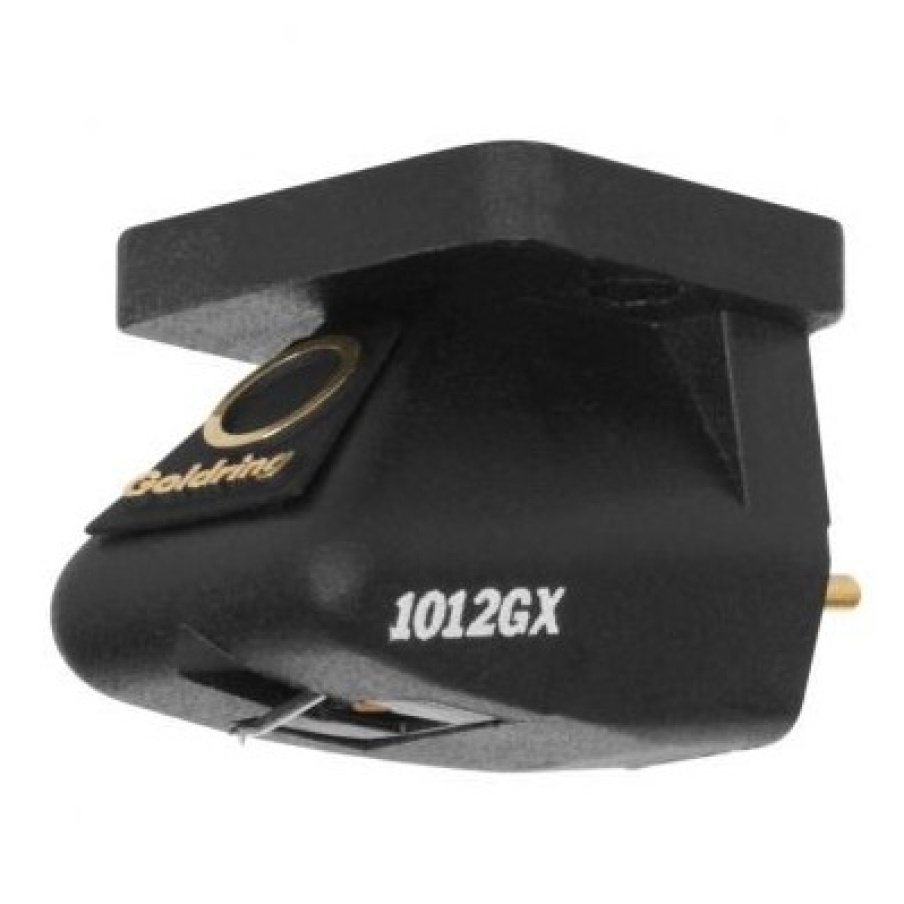

Goldring G1012GX Cartridge

Goldring Cartridges

Price: €379.85
VAT included
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe

All Goldring 1000 series cartridges are handbuilt. Goldring G1012GX is no exception.

Like the more expensive siblings the Goldring G1012GX also has a quite sophisticated stylus tip, namely the fine line nude Gyger II tip. This stylus tip provides the Goldring cartridge with smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound. Advanced diamond tip polishing ensures excellent tracking ability and reduces record wear. Because it fills the record groove more completely due to its larger major radius, the Gyger II represents a major upgrade over normal elliptical stylus types.

The Goldring 1000 series has an almost legendary status for delivering some of the best sounds produced by moving magnet cartridges.

Goldring 1000 series cartridges use a strong one piece body which holds the fixed parts securely in place. The body can be tightly bolted to the headshell for maximum efficiency and optimum sound quality, because it is made from a special type of ultra-rigid, glass reinforced polyester called Pocan.

All styli in the Goldring 1000 series are interchangeable.

We recommend Goldring G1012GX for medium to high mass tonearms and we recommend 20 hours of break in period.

GOLDRING
GL0035M

Data sheet

Frequency response
20 Hz - 20 kHz +/- 3 dB
Static compliance
20 mm/N
Vertical tracking angle
24°
Dynamic compliance
10 mm/N @ 10 Hz
@ 10 Hz10 mm/N
Channel separation
better than 25 dB @ 1 kHz
Stylus radius
Gyger II
Replacement stylus
1012GX - D12GX
Channel balance
within 2 dB @ 1 kHz
Cartridge mass
(inc. fixings)7.6 g
6.3 g
Stylus Type
Replaceable
Load resistance
47 kΩ
Load capacitance
150 - 200 pF
Internal resistance
660 Ω
Internal inductance
570 mH
Sensitivity
6.5 mV +/- 1.5 dB 1 kHz @ 5 cm/sec
Playing weight
1.5 - 2.0 g (1.7 g nom.)
Fixing centre
0.5" (12.7 mm)
Equivalent tip mass
0.45 mg
