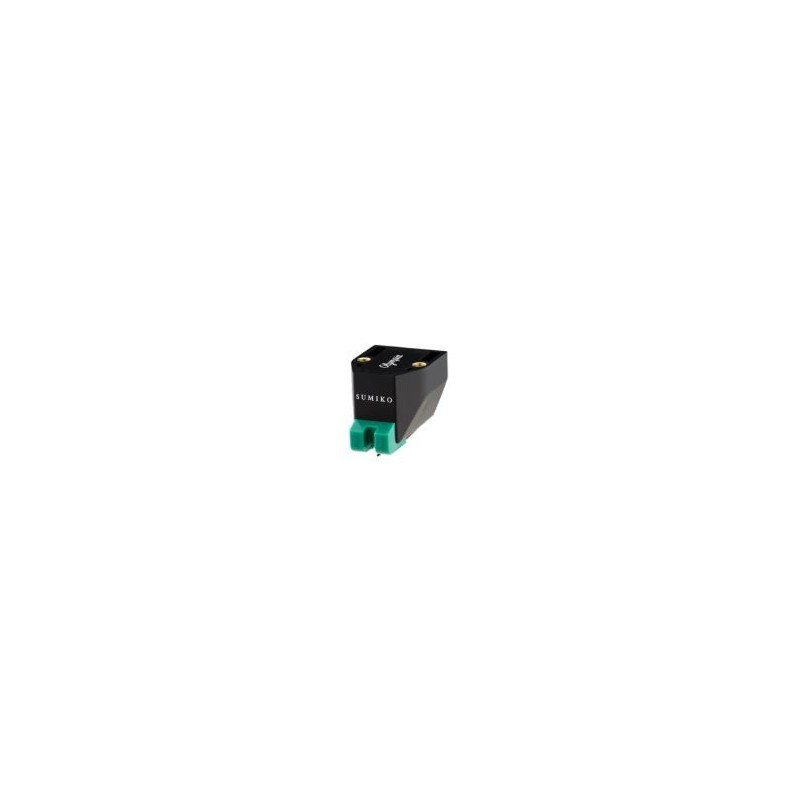

Sumiko Olympia MM Cartridge

Sumiko Cartridges

Price: €179.93
VAT included
Quantity
  • In stock - Shipping Status
  • pack1_ local-shipping Created with Sketch.
    Tracked Shipping - Rates to
  • pack1_ lock Created with Sketch.
    Secure payment by Paypal & Stripe

Sumiko Olympia is part of the new modern series from the 40 year old Japanese cartridge company comprising the following models: Rainier, Olympia, Moonstone and Amethyst. All pickups are handmade by highly qualified cartridge makers.

Sumiko Olympia has a modern design with threaded inserts in the cartridge body, which enable the cartridge to be mounted to the headshell with just two screws – no nuts or washers are required.

Sumiko Olympia comes with an elliptical stylus on aluminium cantilever with an even smaller magnet for a sonic performance that delivers the nuances of a moving coil with the punch of a moving magnet. With the Sumiko Olympia you will experience a warm sound with a detailed treble and good dynamics.

To get the full benefit of this fine Sumiko cartridge it is essential to mount it properly in terms of overhang, azimuth and horizontal alignment.  The finer the stylus the more important the correct setup gets. DaCapo Audio recommends using a good protractor for proper adjustment to get the best out of your cartridge. Please see the options on our website.

SUMIKO
SCA101009

Data sheet

Output voltage
4.0mV
Frequency response
12Hz – 30kHz
Cantilever
Aluminum alloy
Vertical tracking angle
25°
Channel separation
30dB @ 1kHz
Tracking force
1.8g - 2.2g
1.8g – 2.2g
2.0g
Replacement stylus
Rainier Olympia or Moonstone RS (Interchangeable)
Channel balance
1.5dB @ 1kHz
Cartridge mass
6.5g
Stylus Type
0.3 x 0.7mil Elliptical
Coils
High-Purity Copper
Compliance
12×10-6cm/dyn @ 100Hz
Load resistance
47kΩ
Load capacitance
100pF – 200pF
Internal resistance
1130Ω
